XPERT SI-4501 HV Digital Servo


Purchase this product now and earn 99 GAUI Point!

Suitable for: X7 Series

Listing Date: 2014/08/25

Out of stock

SKU: 0S2501 (944102). Category: .

Product Description

XPERT SI-4501 HV Digital Servo
Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
Light weight design
Aluminum middle case for optimized thermal dissipation.
Strong Metal Gear
Sophisticated error correction
High-Speed, High-precision 12-bit AD converter and CPU calculation
Fail safe
Over current protection
Over temperature protection
Start sonorant


Operating Temperature Range -10℃~50℃
Operating Voltage Range 4.8V~7.4V
Operating speed (at no load) 6.0V 0.136 sec/60°
7.4V 0.110 sec/60°
8.4V 0.097 sec/60°
Stall torque (at locked) 6.0V:11.60 Kg/cm(161.01 )
7.4V:14.31 Kg/cm(198.62 )
8.4V:16.24 Kg/cm(225.41 )
Stall current (at locked) 3.3A
Limit angle 180°
Weight(g) (without servo horn) 62.5 ± 0.2
Working Frequence 1520μs/400hz
Maximum travel Approx 210°(at 690→2310 μsec)

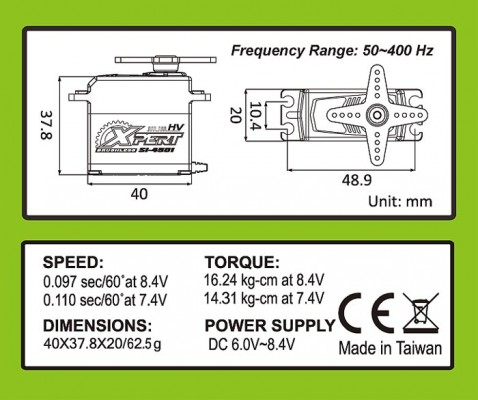

Dimensions: 40×37.80×20 mm
