Product Description
- ♦We extend X5 V2 rotor head about 15mm to increase safety and stability
- ♦New battery position. Bigger battery place and adjustable CG.
- ♦dual push Tail Pitch Slider Set
- ♦CF Tail Boom support rod
- ♦Tail boom support rod retainer.
- ♦CNC Tail Support Clamp & Horizontal Fin mount
Content:

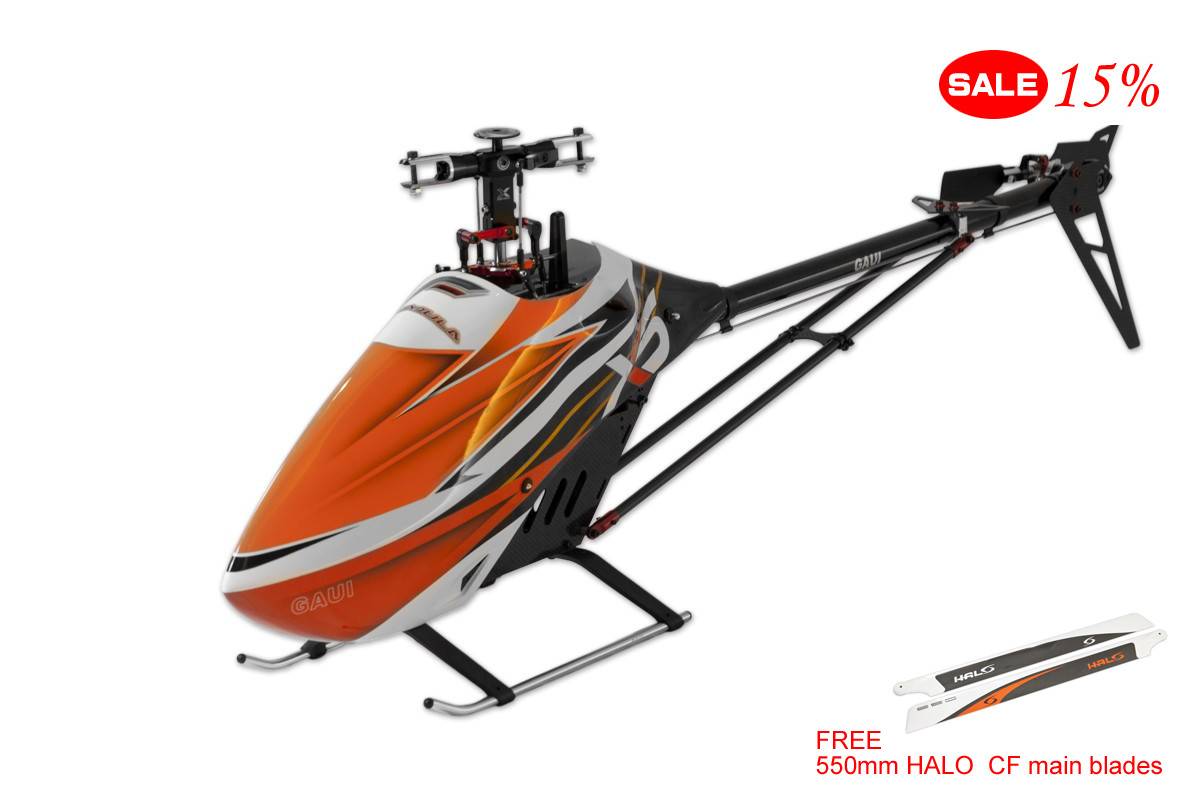

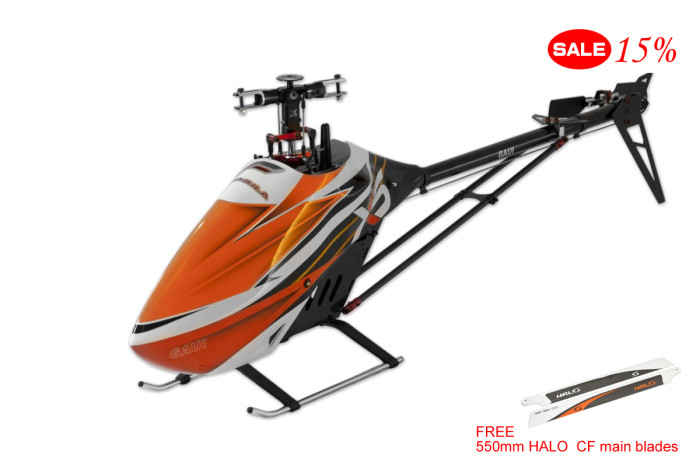

X5 V2 Basic Kit x1 set | |
![]() |

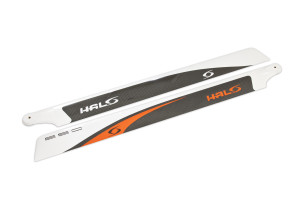

FREE!!HALO CF main blades 550L(CF) x 1set |
![]() |
Tail Rotor Blade Set(82mm) x 1 set |
Specifications:
Height: 336mm
Width: 165mm
Length (including canopy): 1000mm
Weight: 1150g +/-3% (without battery,CF main blades,electronics)
Main Blades: 500 ~ 550mm
Main blade rotation diameter 1120mm
Tail blade: 82mm
Tail rotation diameter: 230mm
Power System recommendation: Motor: 910kV,ESC: 100A
Flight time: 4~5minutes
Required for operation
*Transmitter(6-channel or more,helicopter system)
*Receiver(6-channel or more)
*LiPo Battery: 6S1P(22.2v/ Max size:61x49x150mm)
*Flybarless System x1 pc
*CCPM Servo x 3pcs
*Tail Specialized Servo x 1pc
Tools and Equipment for Assembly
*1.5 mm Hexagon Screw Driver
*2 mm Hexagon Screw Driver
*2.5 mm Hexagon Screw Driver
* Philips Screw Driver
* Lubricant / one-way bearing grease
* Spring calipers, Needle-nosed pliers
* General thread lock
