Product Description
-
- ♦FORMULA’s low center of gravity with the new flybarless main rotor head,Formula canopy & low body 370mm Height, effectively reduce the wind resistance.
-
- ♦In response to extreme 3D flights maneuver X7 is equipped with high strength One way Bearing & Main Gear assembly.
-
- ♦Removable Battery Tray.
-
- ♦Metal Tail case with spiral bevel gears has low noise & high strength features.
X7 FZ Battery Dimension
Content:

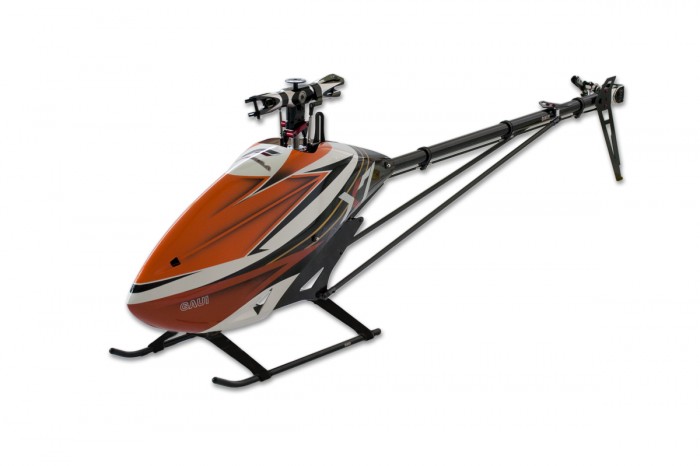

X7 FZ Basic Kit x 1 set
X7 10T x 1 pc
Specifications:
Overall Length: 1340 mm
Main Rotor Diameter: 1610mm
Main rotor blades: 720mm
Overall Height: 383mm
Overall Width: 200mm
Tail Blade Length: 105mm
Tail Rotor Diameter: 290mm
Flying duration: 4~5 minutes(3D flight )
Drive gear ratio: 10:1:4.71
Required for operation
*Transmitter(6-channel or more,helicopter system)
*Receiver(6-channel or more)
Standard size CCPM servos * 3pcs (>15kg torque)
Standard size tail servo * 1pc
3-Axis Gyro * 1pc
Battery :6S1P (22.2V/4200mAh ~5500 mAh) x 2pcs
450~500 KV Blushless motor * 1pc (Motor shaft length ~46mm, Ø6mm)
12S 120~160A ESC * 1pc
CF Main Blades(700mm) x 1 set
CF Tail Rotor Blades(105mm) x 1 set
